Benchmark¶

This user guide shows how to run benchmarks against a vLLM model server deployment by using both Gateway API Inference Extension, and a Kubernetes service as the load balancing strategy. The benchmark uses the Latency Profile Generator (LPG) tool to generate load and collect results.

Prerequisites¶

Deploy the inference extension and sample model server¶

Follow the getting started guide to deploy the vLLM model server, CRDs, etc.

Note: Only the GPU-based model server deployment option is supported for benchmark testing.

[Optional] Scale the sample vLLM deployment¶

You are more likely to see the benefits of the inference extension when there are a decent number of replicas to make the optimal routing decision.

kubectl scale deployment vllm-llama3-8b-instruct --replicas=8

Expose the model server via a k8s service¶

To establish a baseline, expose the vLLM deployment as a k8s service:

kubectl expose deployment vllm-llama3-8b-instruct --port=80 --target-port=8000 --type=LoadBalancer

Run benchmark¶

The inference perf tool works by sending traffic to the specified target IP and port, and collecting the results. Follow the steps below to run a single benchmark. Multiple benchmarking instances can be deployed to run benchmarks in parallel against different targets.

Parameters to customize:¶

For more parameter customizations, refer to inference-perf guides

benchmark: A unique name for this deployment.
hfToken: Your hugging face token.
config.server.base_url: The base URL (IP and port) of your inference server.

Storage Parameters¶

Note: Currently inference-perf outputs benchmark results to standard output only, and results will be deleted once pod is finished running the job.

1. Local Storage (Default)¶

By default, reports are saved locally but lost when the Pod terminates.

storage:
  local_storage:
    path: "reports-{timestamp}"       # Local directory path
    report_file_prefix: null          # Optional filename prefix

2. Google Cloud Storage (GCS)¶

Use the google_cloud_storage block to save reports to a GCS bucket.

storage:
  google_cloud_storage:               # Optional GCS configuration
    bucket_name: "your-bucket-name"   # Required GCS bucket
    path: "reports-{timestamp}"       # Optional path prefix
    report_file_prefix: null          # Optional filename prefix

🚨 GCS Permissions Checklist (Required for Write Access)¶

IAM Role (Service Account): Bound to the target bucket.
- Minimum: Storage Object Creator (roles/storage.objectCreator)
- Full: Storage Object Admin (roles/storage.objectAdmin)
Node Access Scope (GKE Node Pool): Set during node pool creation
- Required Scope: devstorage.read_write or cloud-platform

3. Simple Storage Service (S3)¶

Use the simple_storage_service block for S3-compatible storage. Requires appropriate AWS credentials configured in the runtime environment.

storage:
  simple_storage_service:
    bucket_name: "your-bucket-name"   # Required S3 bucket
    path: "reports-{timestamp}"       # Optional path prefix
    report_file_prefix: null          # Optional filename prefix

Steps to Deploy¶

Check out the repo.

git clone https://github.com/kubernetes-sigs/gateway-api-inference-extension
cd gateway-api-inference-extension/benchmarking

Get the target IP. The examples below shows how to get the IP of a gateway or a k8s service.

# Get gateway IP
GW_IP=$(kubectl get gateway/inference-gateway -o jsonpath='{.status.addresses[0].value}')
# Get LoadBalancer k8s service IP
SVC_IP=$(kubectl get service/vllm-llama3-8b-instruct -o jsonpath='{.status.loadBalancer.ingress[0].ip}')

echo $GW_IP
echo $SVC_IP

Deploy Benchmark Tool.

export PORT='<YOUR_PORT>'
export HF_TOKEN='<YOUR_HUGGINGFACE_TOKEN>'
helm install igw-benchmark inference-perf/ -f benchmark-values.yaml \
--set hfToken=${HF_TOKEN} \
--set "config.server.base_url=http://${GW_IP}:${PORT}"

export PORT='<YOUR_PORT>'
export HF_TOKEN='<YOUR_HUGGINGFACE_TOKEN>'
helm install k8s-benchmark inference-perf/ -f benchmark-values.yaml \
--set hfToken=${HF_TOKEN} \
--set "config.server.base_url=http://${SVC_IP}:${PORT}"

Wait for benchmark to finish and download the results. Follow inference-perf [guides](https://github.com/kubernetes-sigs/inference-perf on how to access logs. At this moment logs are deleted from the pod if using local storage.

GCS Benchmarking Script¶

If storing results in GCS, you can use the download-gcs-results.bash script.

Use the benchmark_id environment variable to specify what this benchmark is for. For instance, inference-extension or k8s-svc.
```
benchmark_id='k8s-svc' ./download-gcs-results.bash <GCS_BUCKET> <GCS_FOLDER>

benchmark_id='inference-extension' ./download-gcs-results.bash <GCS_BUCKET> <GCS_FOLDER>
```
After the script finishes, you should see benchmark results under ./benchmarking/output/default-run/k8s-svc/results/json/<GCS_FOLDER>.

Uninstall the chart to tear down resources

helm uninstall igw-benchmark k8s-benchmark

Tips¶

When using a benchmark_id other than k8s-svc or inference-extension, the labels in ./tools/benchmark/benchmark.ipynb must be updated accordingly to analyze the results.
You can specify run_id="runX" environment variable when running the ./download-benchmark-results.bash script. This is useful when you run benchmarks multiple times to get a more statistically meaningful results and group the results accordingly.
Update the stages to request rates that best suit your benchmark environment.

Advanced Benchmark Configurations¶

Refer to the inference-perf guides for a detailed list of configuration knobs.

Analyze the results¶

This guide shows how to run the jupyter notebook using vscode after completing k8s service and inference extension benchmarks.

Create a python virtual environment.

python3 -m venv .venv
source .venv/bin/activate

Install the dependencies.

pip install -r ./tools/benchmark/requirements.txt

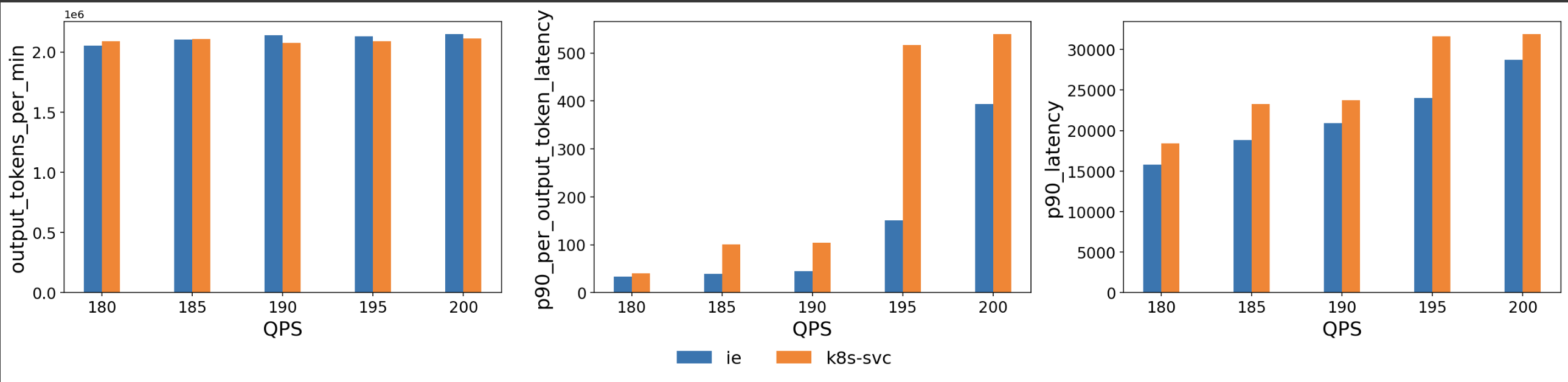

Open the notebook ./benchmarking/benchmark.ipynb, and run each cell. In the last cell update the benchmark ids withinference-extension and k8s-svc. At the end you should see a bar chart like below where "ie" represents inference extension. This chart is generated using this benchmarking tool with 6 vLLM (v1) model servers (H100 80 GB), llama2-7b and the ShareGPT dataset.
